Installing the rear brake pad wear sensor

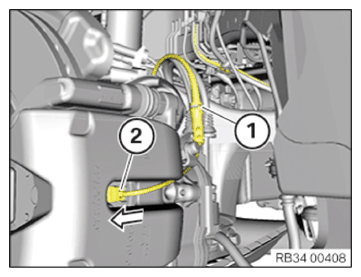

- Install the brake pad wear sensor (2) in the direction of arrow in the brake pad and ensure its correct fit.
- Hook the cable of the brake pad wear sensor (2) in the holder (1).
- Hook the cable of the brake pad wear sensor to the holders (1).
- Connect connectors (2) and lock.
- Insert removed nuts (2) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover | ||
| Screw | Tightening torque | 3 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
Follow-up work
- Mount the rear right WHEEL .
