Detach EMF actuator

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Prepare the removal of the EMF ACTUATOR .

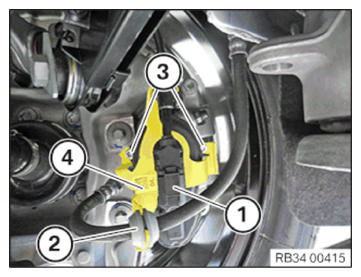

Disconnect plug connection (1).
Detach the brake hose (2) from the holder.
Release screws (3) and remove the holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

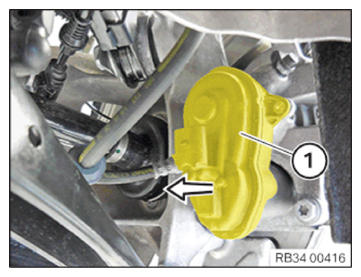

Remove the EMF actuator (1) in the direction of the arrow from the brake caliper.

G14194087

Courtesy of BMW OF NORTH AMERICA, INC.
