34 52 162 Removing and installing/replacing EMF actuator (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Check sealing ring of the EMF actuator
Check sealing ring of the EMF actuator

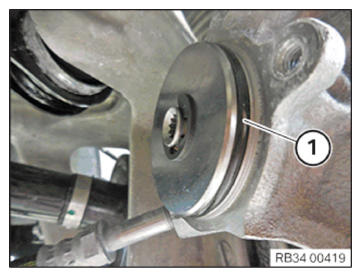

Check sealing ring (1) for damage, replace if necessary.
Apply a light coating of brake fluid on the sealing ring (1) before lining.
