Install EMF actuator

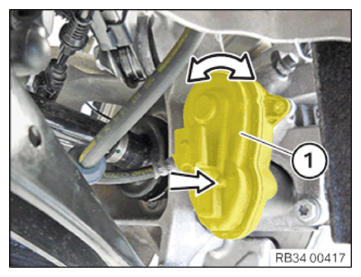

• EMF actuator (1) Carefully fit controller drive until gearing engage and EMF actuator rests flush on brake caliper.
• If necessary, turn the EMF actuator slightly until the bore and the screw thread are aligned.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the holder (4) and position and tighten the bolts (3).
  TIGHTENING TORQUES SPECIFICATION



  EMF actuator to brake caliper
  Replace screws.	Tightening torque	12 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug (1).
• Attach the brake hose (2) in the holder.

Follow-up work

• After EMF actuator replacement: Put electromechanical holding brake into OPERATION .
