Remove Engine Mount

Further information is available  .

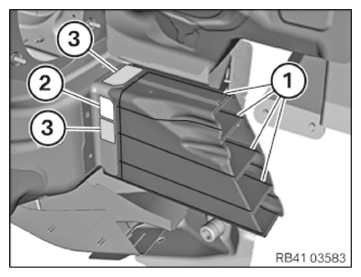

• Release self-tapping screws in the areas (1) and (2).

  Release the rivet connectors in the areas (3).

• Heat and remove the bonded connections in areas (1) to (3). Do not damage aluminum spring support in the process!

  Courtesy of BMW OF NORTH AMERICA, INC.

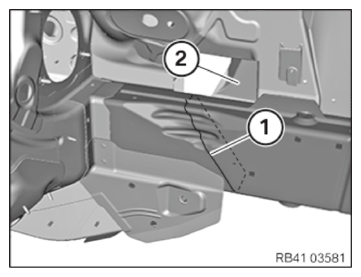

• Perform the separating cut (1) as shown. Do not damage aluminum spring support (2) in the process!
• Remove the engine mount section.

  Courtesy of BMW OF NORTH AMERICA, INC.

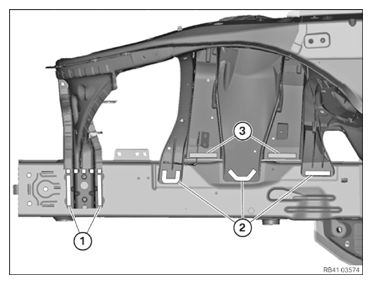

• Open welded connections in area (1).
• Release self-tapping screws in area (2).
• Heat and remove the bonded connections in area (2).
• Remove reinforcement (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

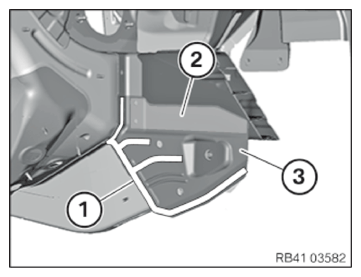

• Make separating cuts (1) as shown. Detach engine mount section-wise.
• Partially release the self-tapping screw in area (2) and rivet connectors in the areas (3) with a file belt sander.
• Heat and remove the bonded connection in areas (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

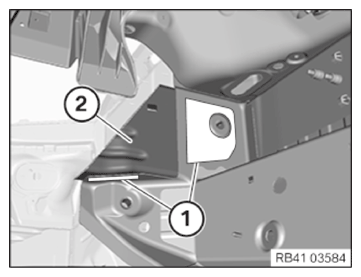

• Release self-tapping screws and rivet connectors in the areas (1).
• Heat and remove the bonded connections in areas (1) and remove the engine mount (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
