Supplying The New Parts Required
Prerequisite
- Vehicle is secured on the straightening bench.
NOTE:
DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
SAFETY INSTRUCTIONS FOR HANDLING HYBRID VEHICLES/ELECTRIC VEHICLES .
- For additional information see:
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
Further information is available.

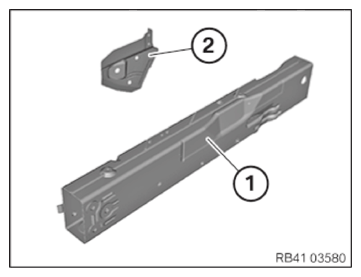

- Procure the following new parts (see Electronic Parts Catalog): engine carrier (1)
Engine mount reinforcement (2)
NOTE:
TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) .
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) .
