Prepare New Part

Further information is available.

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

Mark new luggage compartment floor in accordance with severance cut on vehicle + 20 mm extra material and cut.

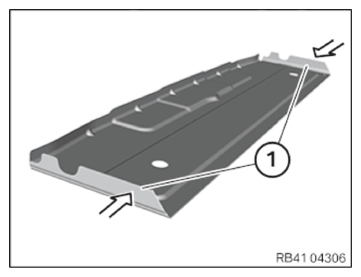

Slightly bend the flange surfaces (1) towards the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust new part in conjunction with tail panel and secure.

Courtesy of BMW OF NORTH AMERICA, INC.
In this area (1), drill ten holes with ø 4.2 mm for the blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.
In this area (1), drill four holes with a diameter of 4.2 mm for the blind rivets.
Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace coarse thread studs and threaded welding studs, steel surface

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Refer to the number and position of the component to be replaced or the attachments.
Replace coarse thread bolt (1) and threaded welding bolt (2).
Parts: Coarse Thread Bolt (1), Threaded Weld Bolt (2)
Weld the coarse threaded bolt (1) and threaded welding bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
