Remove Outer Wheel Arch Section With Reinforcement

Further information is available.

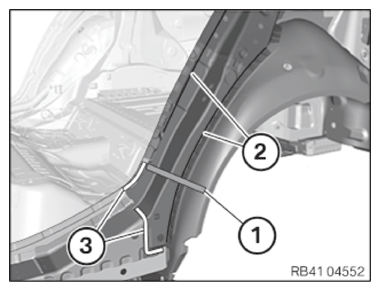

• Remove cavity sealing (1).
• Carry out separating cuts (2) as shown.
• Loosen welded connections in areas (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

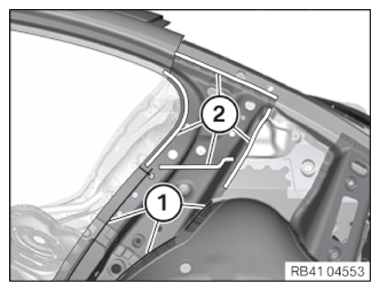

• Carry out separating cuts (1) as shown.
• Release welded connections in areas (2).
• Remove the C-pillar support and C-pillar reinforcement.

  Courtesy of BMW OF NORTH AMERICA, INC.

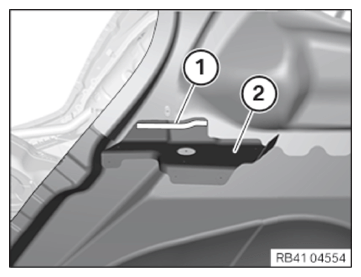

• Open welded connections in area (1).
• Remove the C-pillar insert (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

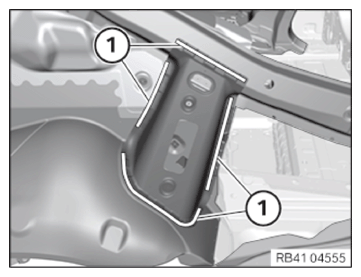

• Open the welded connections in the areas (1) and remove the C-post tie rod.

  Courtesy of BMW OF NORTH AMERICA, INC.

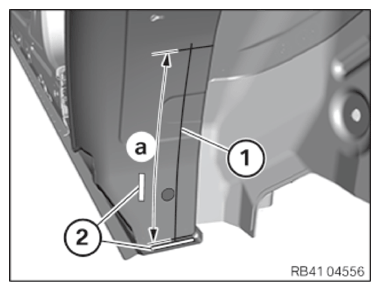

• Mark and make the separating cut (1) according to dimension a.

  Dimension a = 280 mm.

• Release welded connections in areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

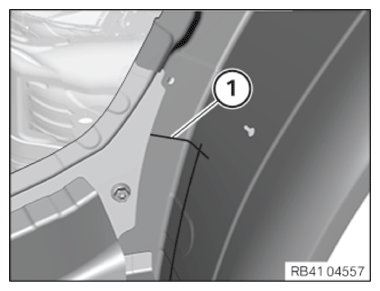

• Continue the separating cut (1) from the previous operation as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

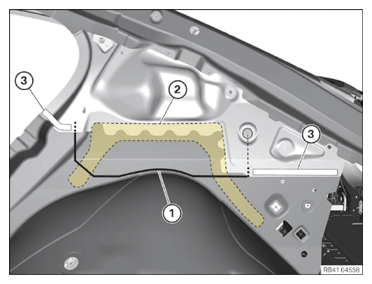

• Mark severance cut (1) according to schematic diagram and disconnect. Do not damage the underlying bonded rivet connection (2) in the process.

  Separate only the outer panel!

• Open the welded connections in the areas (3) from the inside.

  Courtesy of BMW OF NORTH AMERICA, INC.

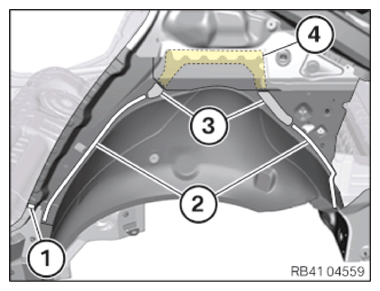

• Open the welded connection in the area (1).
  NOTE: TECHNICAL INFORMATION
  For additional information see: OPENING BONDED CONNECTIONS - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
• Open spot-welded adhesive joints in areas (2).
• Loosen the bonded rivet connection joints in the areas (3). While doing so, do not damage the adjacent bonded rivet connections in the area (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove outer section of wheel arch.
