Collision - Body Panel Repair (G30) (2 Of 3)
>>
41 14 Wheel Wells
>>
41 14 504 Replace the rear right outer wheel arch section (side panel detached) (530i 2017-2022, 530i xDrive 2017-2022)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section
Remove the cavity sealing (1).

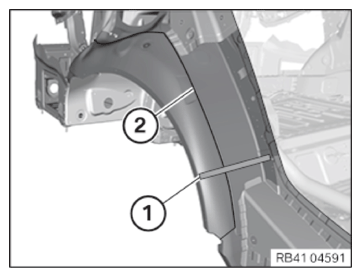

Mark and make the separating cut (2) as shown.
Courtesy of BMW OF NORTH AMERICA, INC.
Mark and make the separating cut (1) as shown.
Remove the separated section of the outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
