Prepare New Part
Further information is available.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
- Mark and make the separating cut on the new part according to the separating cut on the vehicle with a material allowance of + 20 mm.
- Prepare the joint areas for bonding with the adhesive rivet technology.
- Adjust the new part together with the side panel and fix in place.

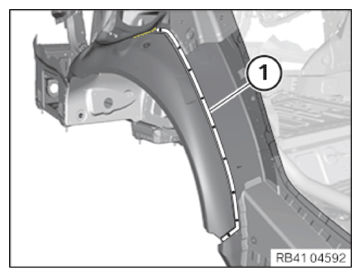

- Set 9 bores with ø 4.2 mm for the blind rivets in the area of the bonding surface (1).
- Set 7 bores with ø 4.2 mm for the blind rivets in the area of the bonding surface (1).
- Remove new part and deburr bores.
Replace coarse thread studs and threaded welding studs, steel surface
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Refer to the number and position of the component to be replaced or the attachments.
- Replace coarse thread bolt (1) and threaded welding bolt (2).
Parts: Coarse Thread Bolt (1), Threaded Weld Bolt (2)
- Weld the coarse threaded bolt (1) and threaded welding bolt (2) onto the new part.
