Installing The Rear Outer Wheel Arch Section

Further information is available.

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

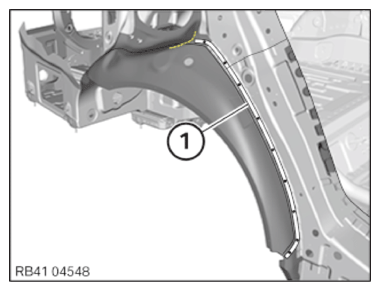

• Apply adhesive K5 to the bonding surfaces.
  ADHESIVE DESCRIPTION



  Body adhesive K5

  50 ml

  83192158654

• Install the new part in area (1), rivet with blind rivet N3.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

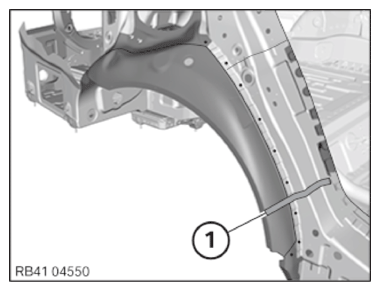

• In area (1), rivet the new part with blind rivet N3.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .

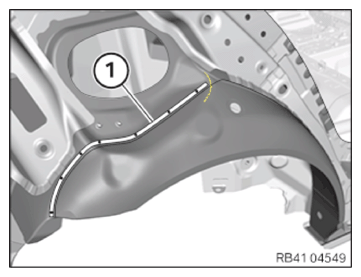

• Apply sealant to new cavity acoustic baffle. Install cavity sealing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
