Install The Connection Between The Engine Mount And The Side Frame

• Install new part and weld as per new part preparation process.

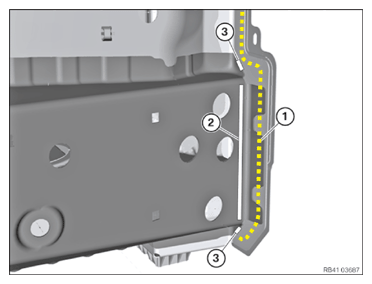

• Note the spot-welded adhesive joints in the outer skin area (1). Avoid excessive application of heat in the outer skin area (1). Cool welding areas (2) and (3) during the welding process using compressed air.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
