Install The Outer Section Of The B-Pillar
Further information is available.
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
Use only approved spot welder for repair.
For additional information see:WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) - (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded)
For additional information see: 41 00... Installation of cavity sealing (expanded)

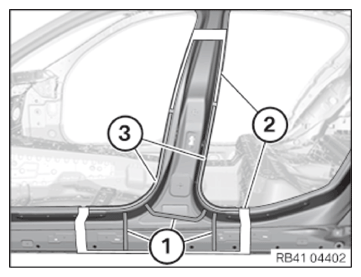

- Apply sealant D1 to the cavity sealing elements (1).CONSUMABLE - SEALANT DESCRIPTION
Sealant D1 (seam sealing) 310 ml 83422409985 - Install the new part and reinforcement plates and weld in areas (2) and (3) as per the new part preparation.
Follow-up work
- Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
- Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
