Remove Tail Panel Outer Section

NOTE: Perform the steps on the left and right side.

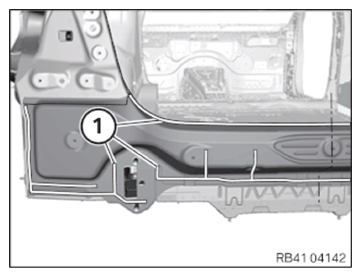

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension A = approx. 23 mm below the component edge of the tail light stand.

NOTE: Install new part overlapping in area of severance cut.

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1). Remove tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.
