Install Rear Door
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Attach door from above.
- Secure door against closing.

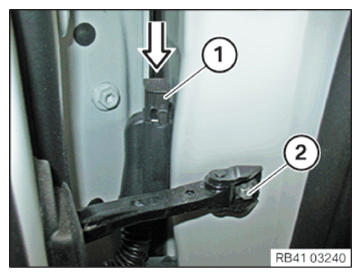

- Connect plug connection and push lock (1) down.
- Tighten screw (2) at door stop.
TIGHTENING TORQUES SPECIFICATION
| Door stop to pillar | |
| Screw | Tightening torque 28 Nm |

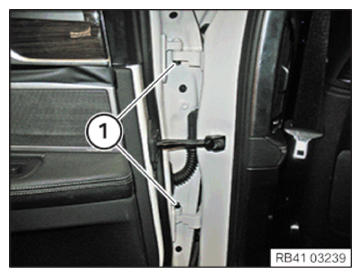

- Tighten screws (1) between both hinge elements at top and bottom.
TIGHTENING TORQUES SPECIFICATION
| Screw connection, hinge parts | |
| Screw | Tightening torque 27 Nm |
