Remove Bonnet
Prerequisite
- Vehicle does not have active pedestrian protection.
Preliminary work
- Refer to REMOVING THE NOZZLE CHAIN .
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
Perform the operations on the left and right side.

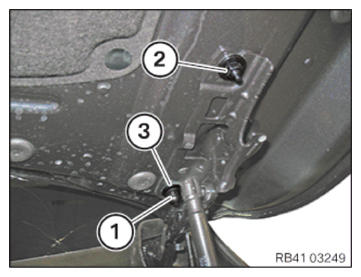

- Remove protective cap (1).
- Slacken nut (2).
- Support the bonnet.
- Loosen nut (3).
- Remove bonnet.
