Installing The Engine Compartment Lid Hinge, Right

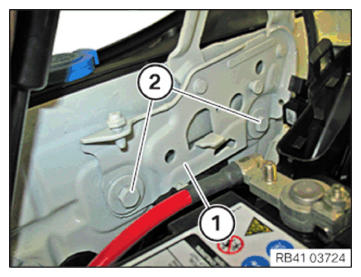

• Position the engine compartment lid hinge (1) as per the available screw marks.
• Tighten the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

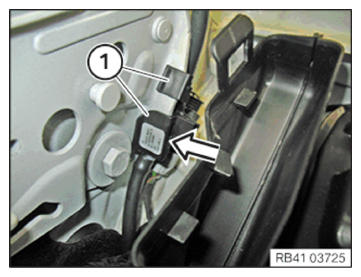

• Clip in the cable clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Refer to INSTALLING THE ACTUATOR ON THE RIGHT BONNET HINGE
• Refer to INSTALLING COWL PANEL COVER .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALL LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE GAS PRESSURE SPRING FOR ENGINE COMPARTMENT LID .
• refer to INSTALL BONNET .
• Refer to CHECKING THE GAP DIMENSION OF THE BONNET
• Refer to INSTALLING THE NOZZLE CHAIN .
• Refer to CONNECTING ALL BATTERY EARTH LEADS .
