Installing Tailgate
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.

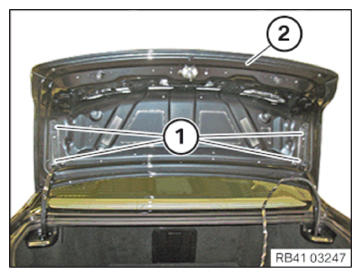

- Position tailgate (2) on the hinge.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Tailgate to hinge | |
| Screw | Tightening torque 19 Nm |
