Adjusting Tailgate

NOTE: Perform the operations on the left and right side.

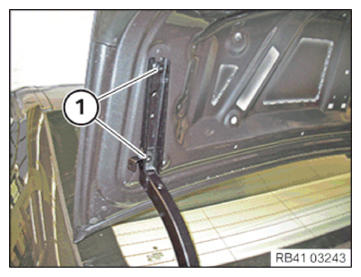

Undo screws (1) until the tailgate can be moved.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

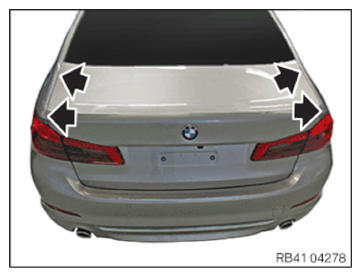

Check the gap dimensions (arrows) between tailgate and side panels.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Gap dimensions do not correspond to the specifications.

Measure

NOTE: Perform the operations on the left and right side.

TIGHTENING TORQUES SPECIFICATION

Tailgate to hinge
Screw	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
