41 62 Tailgate
>>
41 62 540 REMOVING AND INSTALLING/REPLACING BOTH TAILGATE HINGES (TAILGATE REMOVED) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove Right Tailgate Hinge
Remove Right Tailgate Hinge

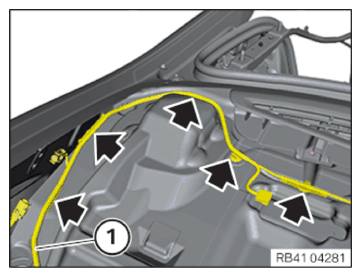

Unclip the wiring harness
(1)
from the brackets (arrows) and set it aside.
Courtesy of BMW OF NORTH AMERICA, INC.
(1)

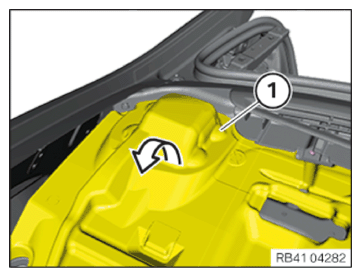

Fold the sound insulation forwards.
Courtesy of BMW OF NORTH AMERICA, INC.

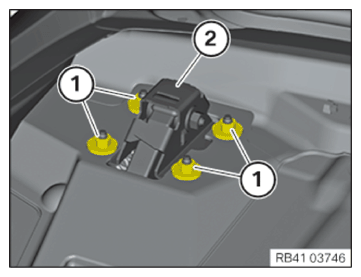

Loosen nuts
(1)
.
Remove tailgate hinge
(2)
downwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
