Remove Cover Housing

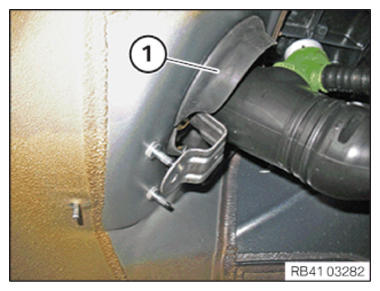

Loosen the sealing lip (1) from the wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

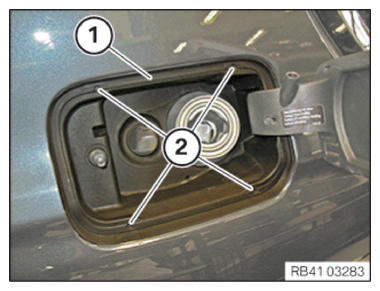

Pierce the cover housing (1) in the highlighted areas (2) using a small screwdriver.

Courtesy of BMW OF NORTH AMERICA, INC.
Hold cover bowl under tension.
Insert the screwdriver no more than 10 mm deep.

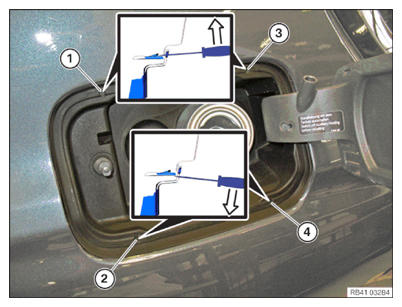

Unlock the detents (6) in a sequence from (1) to (4) using a screwdriver (5).

Courtesy of BMW OF NORTH AMERICA, INC.

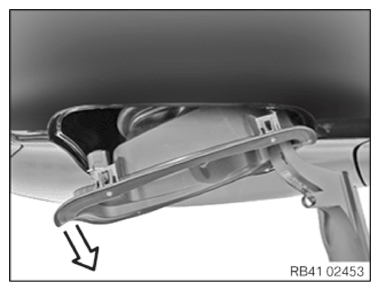

Turn and remove the cover housing from the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

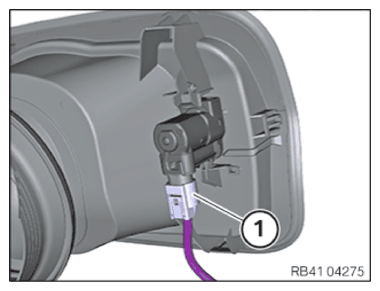

Unlock plug connection (1) and disconnect.
Close fuel filler flap.
Remove the cover housing.

Courtesy of BMW OF NORTH AMERICA, INC.
