Install Cover Housing

Renew the cover housing.
Parts: fuel filler neck h.

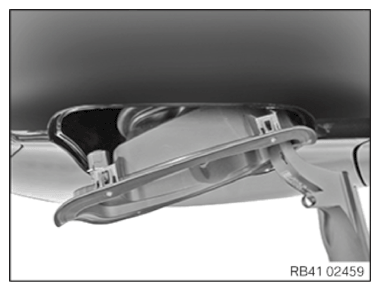

Push the cover housing towards the front at an angle into the side panel.
Push sealing cup over fuel filler pipe.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the plug connection (1).
Open fuel filler flap.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cover housing (1) into the side panel.
The detents (2) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Using the installation aid (1), pull the sealing lip (2) over the sheet metal flange of the wheel arch (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Check
Check the sealing lip (1) is positioned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Sealing lip (1) does not have uniform contact with the rear quarter panel.

Measure
Check flange (1) on rear quarter panel for damage.
Straighten flange if necessary.

Check
Check the sealing lip (1) is positioned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The sealing lip (1) is not evenly in contact with the wheel arch.

Measure
Connect the sealing lip (1) to the wheel arch.
