Installing The Cover Housing For The High-Voltage Charging Socket

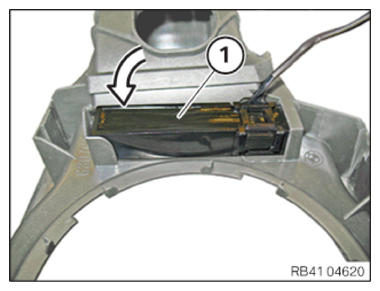

• Position and lock the charge status indicator (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the cover housing into the side panel.
• Connect the plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

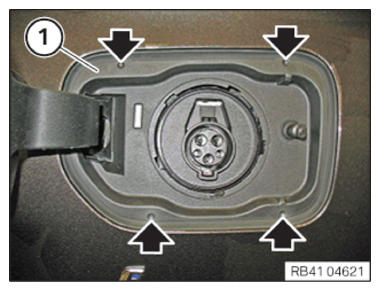

• Lock the cover housing (1) at the marked areas in the side panel.

  It should be possible to hear the detents snap into place.

  Courtesy of BMW OF NORTH AMERICA, INC.

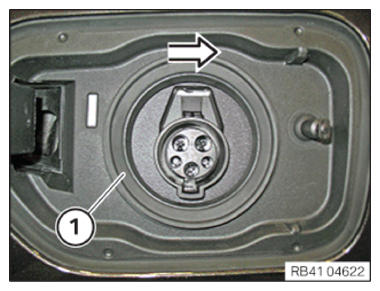

• Position the sealing ring (1) and rotate to the right up to the stop.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the shaped part (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALL THE CHARGING SOCKET FLAP .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
