Body Gap Dimensions REH-Hin-P-4100-SPALT - V.3

The dimensions stated in this document apply at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority. In terms of door gaps the maximum deviation between the front and rear door gap must be 1.0 mm. No gap dimension are specified for components which cannot be adjusted.

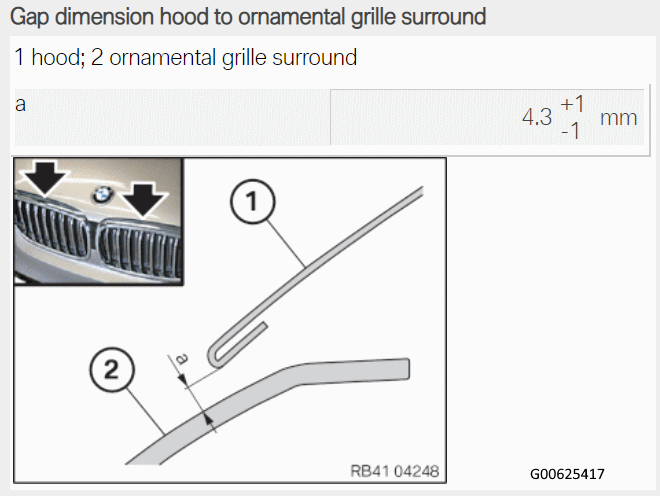

Fig 1: Hood And Grille Body Gap Dimensions And Measurement Points

G00625417

Courtesy of BMW OF NORTH AMERICA, INC.

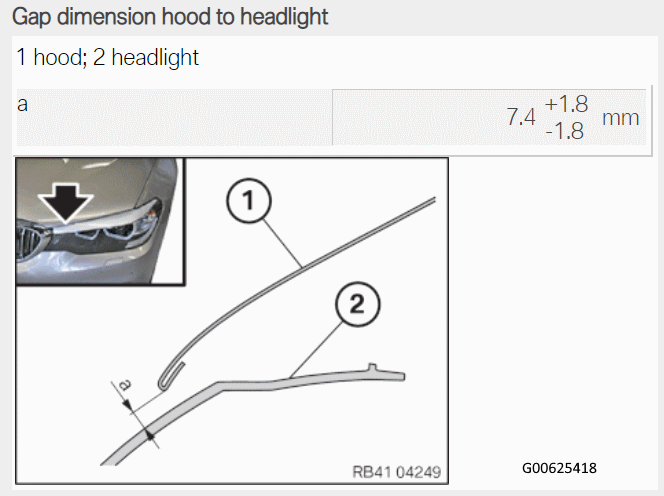

Fig 2: Hood And Inner Headlamp Body Gap Dimensions And Measurement Points

G00625418

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Hood And Outer Headlamp Body Gap Dimensions And Measurement Points

G00625419

Courtesy of BMW OF NORTH AMERICA, INC.

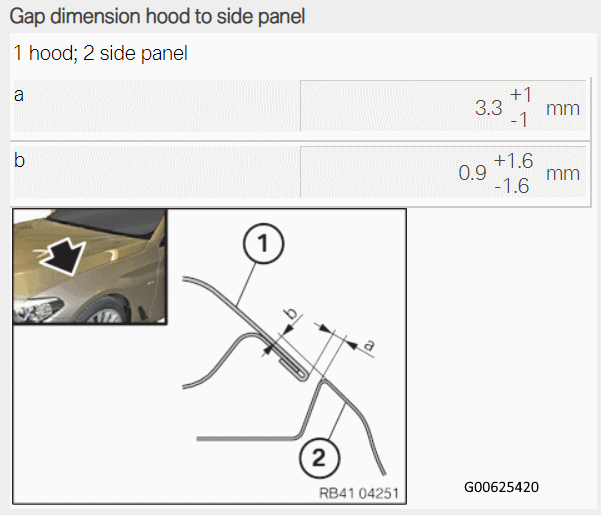

Fig 4: Hood And Front Fender Body Gap Dimensions And Measurement Points

G00625420

Courtesy of BMW OF NORTH AMERICA, INC.

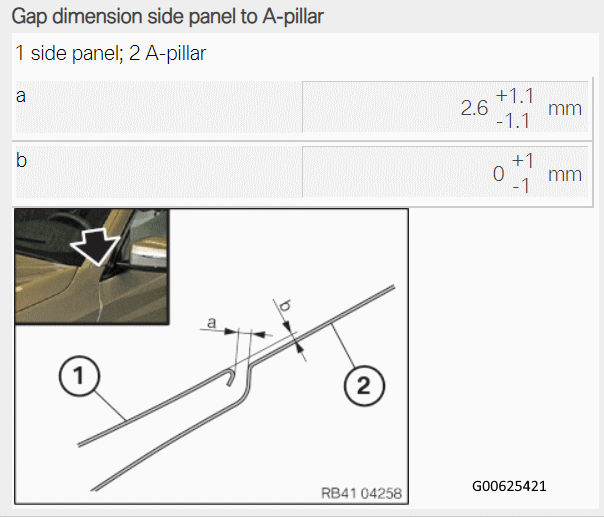

Fig 5: Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

G00625421

Courtesy of BMW OF NORTH AMERICA, INC.

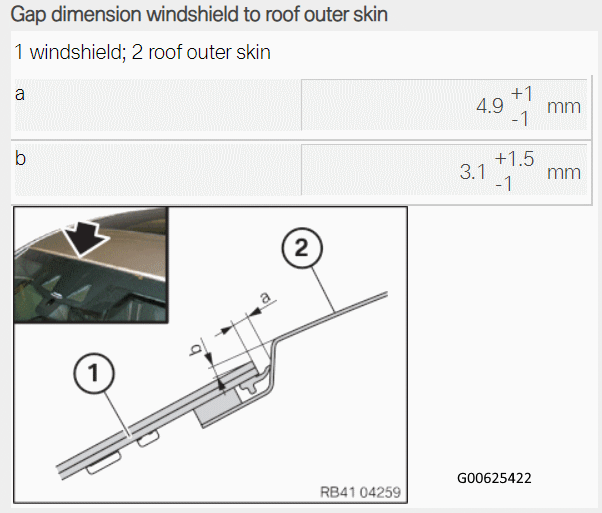

Fig 6: Windshield And Front Roof Body Gap Dimensions And Measurement Points

G00625422

Courtesy of BMW OF NORTH AMERICA, INC.

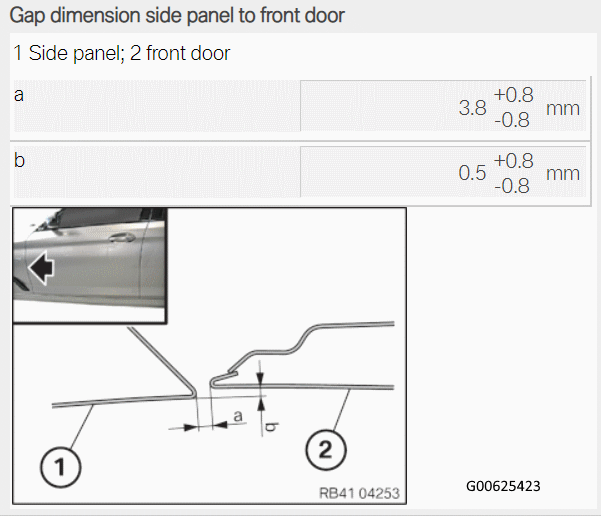

Fig 7: Front Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G00625423

Courtesy of BMW OF NORTH AMERICA, INC.

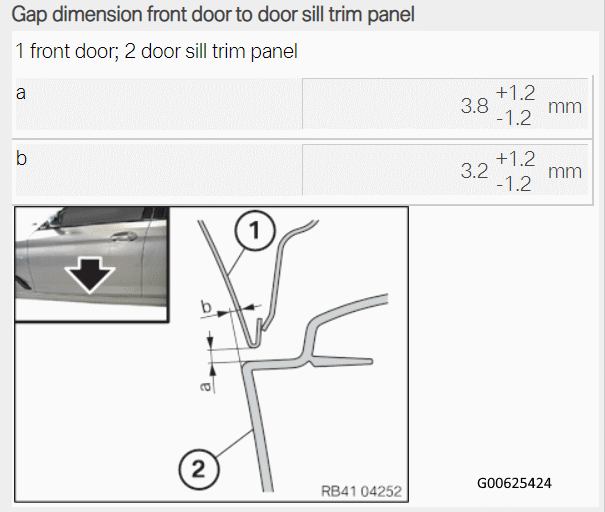

Fig 8: Front Door Body Gap Dimensions And Measurement Points

G00625424

Courtesy of BMW OF NORTH AMERICA, INC.

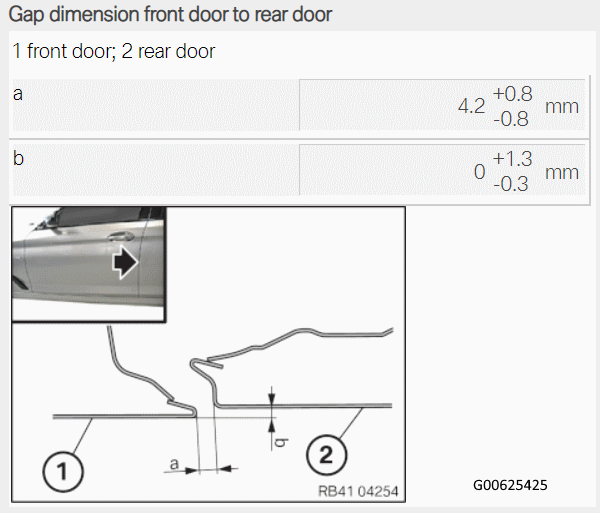

Fig 9: Front Door And Rear Door Body Gap Dimensions And Measurement Points

G00625425

Courtesy of BMW OF NORTH AMERICA, INC.

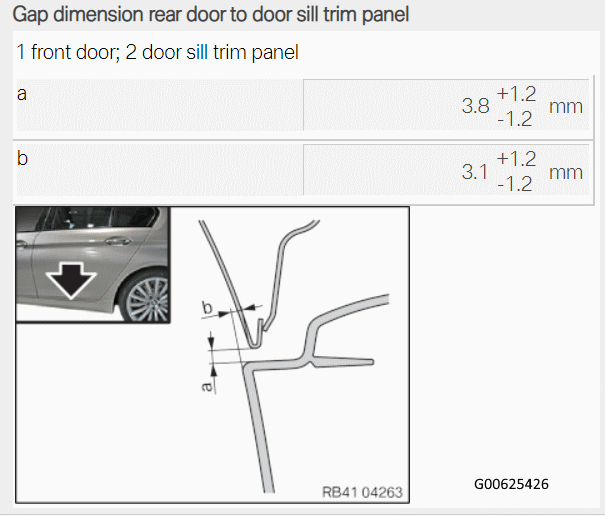

Fig 10: Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G00625426

Courtesy of BMW OF NORTH AMERICA, INC.

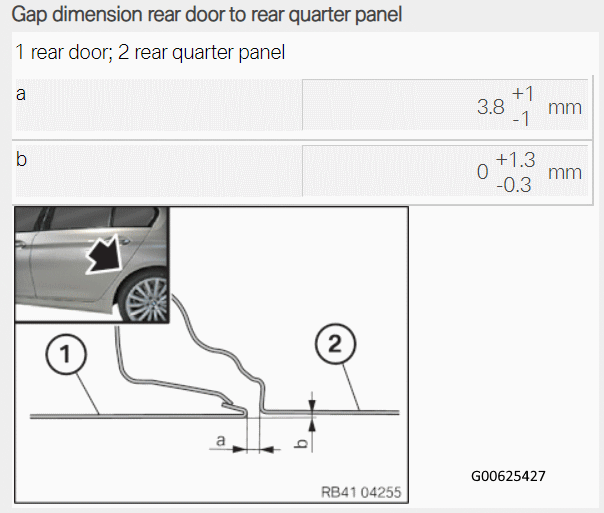

Fig 11: Rear Door And Quarter Panel Body Gap Dimensions And Measurement Points

G00625427

Courtesy of BMW OF NORTH AMERICA, INC.

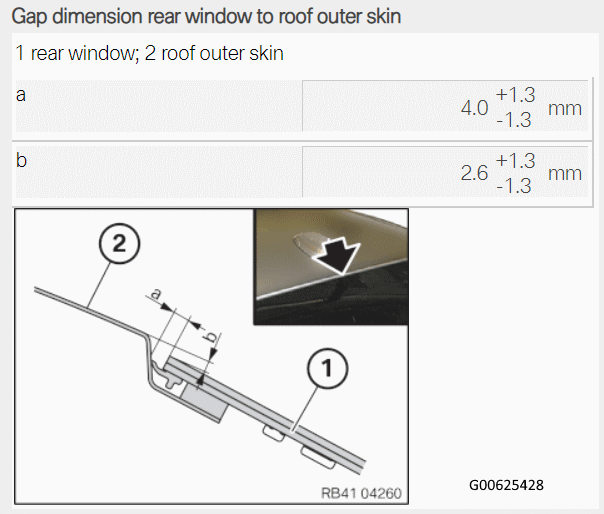

Fig 12: Back Glass And Rear Roof Body Gap Dimensions And Measurement Points

G00625428

Courtesy of BMW OF NORTH AMERICA, INC.

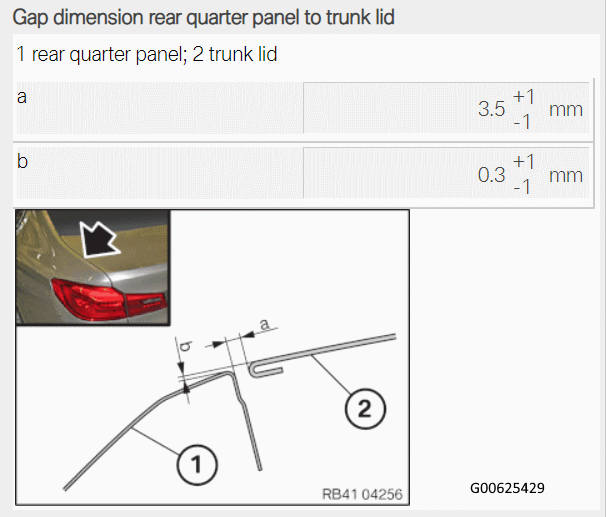

Fig 13: Trunk Lid And Quarter Panel Body Gap Dimensions And Measurement Points

G00625429

Courtesy of BMW OF NORTH AMERICA, INC.

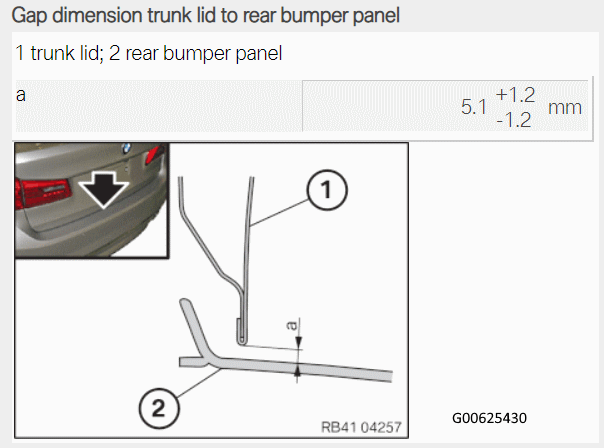

Fig 14: Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points

G00625430

Courtesy of BMW OF NORTH AMERICA, INC.

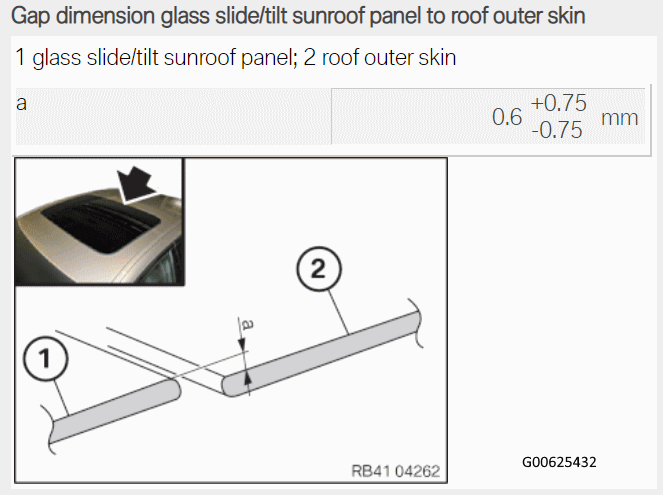

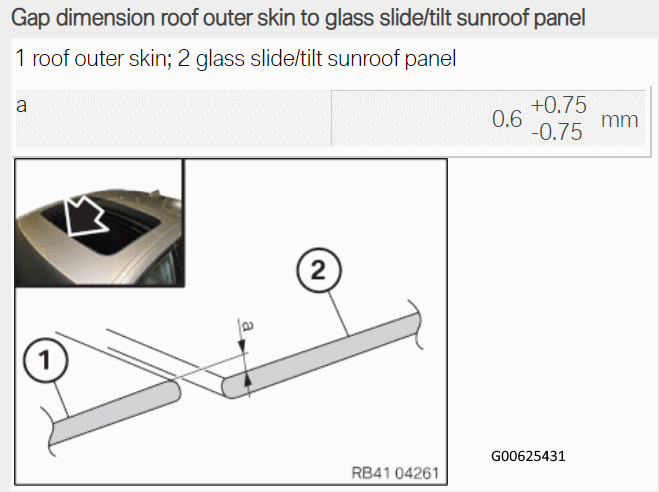

Fig 15: Front Moonroof And Front Roof Body Gap Dimensions And Measurement Points

G00625431

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Rear Moonroof And Rear Roof Body Gap Dimensions And Measurement Points

G00625432

Courtesy of BMW OF NORTH AMERICA, INC.
