Install Carrier Support

Further information is available  .

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
  CONSUMABLE - CLEANING AGENT DESCRIPTION (R2)



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE - CLEANING AGENT DESCRIPTION (R1)



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K1 to the bonding surfaces.
  ADHESIVE DESCRIPTION



  Body adhesive K1

  195 ml

  83190413015

• Install the new parts with an alignment bracket or a universal mount.

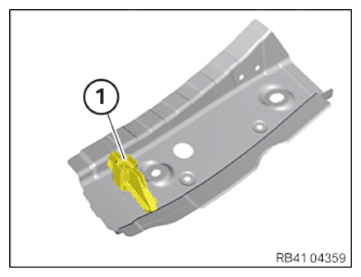

• Rivet the new part in area (1) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1	83190301414
  Ø 6.5 mm; clamping area 2.8-4.8 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

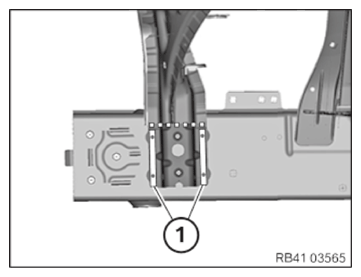

• Rivet new parts in the areas (1) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION (N1)



  Blind rivet N1	83190301414
  Ø 6.5 mm; clamping area 2.8-4.8 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

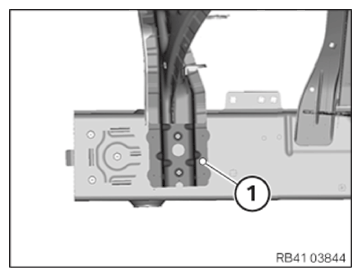

• Apply sealant D1 to the new cavity sealing (1).
  CONSUMABLE - SEALANT DESCRIPTION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install cavity sealing (1) in the new part.
• Apply sealant D1 to cavity sealing (1).
• Install the carrier support for the new part.

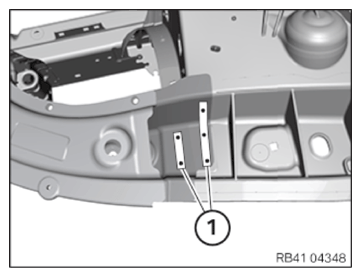

• Rivet the new parts in the areas (1) and (2) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION (N1)



  Blind rivet N1	83190301414
  Ø 6.5 mm; clamping area 2.8-4.8 mm

• Rivet the new parts in the areas (3) with blind rivets N3.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE - BLIND RIVET DESCRIPTION (N3)



  Blind rivet N3	83190301421
  Ø 4 mm; clamping area 1-3 mm

• In the area (4), use a bind rivet N6.
  CONSUMABLE - BLIND RIVET DESCRIPTION (N6)



  Blind rivet N6	83192158655
  Ø 4 mm; clamping area 3-5 mm

• Weld the new parts in areas (1) according to the new part preparation process.

  Avoid excessive application of heat to adhesive areas

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld the new part in areas (1) according to the new part preparation process.

  Avoid excessive application of heat to adhesive areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install EMC screw

• Drill a 4.2 mm diameter hole after the adhesive has fully cured.
• Screw in the EMC screw.
• Seal the EMC screw with sealing compound.
  CONSUMABLE - SEALANT DESCRIPTION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

• In area (1) 1, install the EMC screw.
  CONSUMABLE - SCREW DESCRIPTION



  screw	83190301639
  EMC screw, SF Plus, M5x15

  Courtesy of BMW OF NORTH AMERICA, INC.
