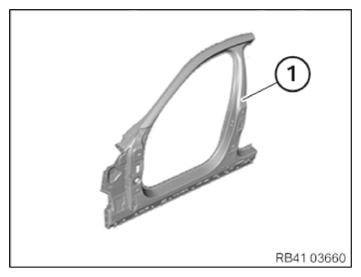

Supplying The New Parts Required
NOTE:
DANGER High-voltage system. The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Refer to REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
