Removal Of The Luggage Compartment Center Floor Piece

Further information is available.

NOTE: Perform the steps on the left and right side.

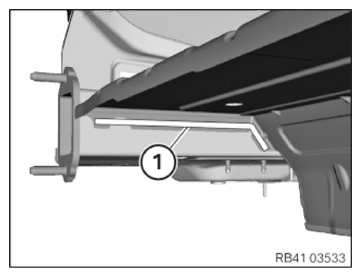

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS - (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022) .

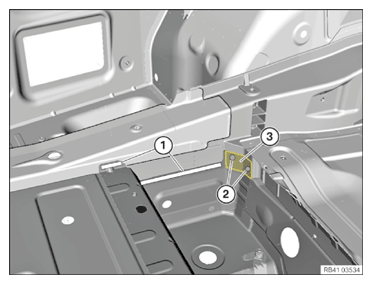

Release welded connections in areas (1).
Undo the self-tapping screws (2).
Release bonded connection in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the self-tapping screw and bonded connection in the area (1).
Release welded connections in areas (2).
(3) Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
