Raise front axle support

If installed on left: Position spray guard

• Position spray guard (1) on output shaft (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

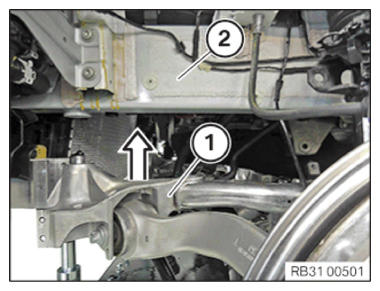

• Lift the front axle support (1) and position it on the side member (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  If installed on left: Install spray guard  -->

• Position spray guard (2) on front axle support.
• Position screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Splash guard on front axle support
  M6
  	tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws (1) of spray guard (2).
  TIGHTENING TORQUES SPECIFICATION



  Splash guard on front axle support
  M6
  	tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
