Remove lower wishbone

Preliminary work

• Refer to REMOVING THE FRONT LEFT WHEEL .
• Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .

• Unfasten nut (1).
• Remove the screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unfasten nut (1).
• Remove the screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

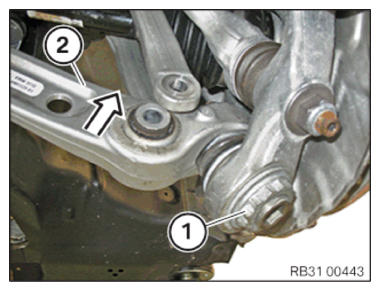

• Unfasten nut (1).
• Loosen wishbone (2) from the swivel bearing with the wheel guide joint upwards in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unfasten nut (1).
  NOTE: Counter support on the Torx socket of the wheel guide joint (2).
• Remove the wheel guide joint (2) from the wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.
