Securing tension strut on swivel bearing

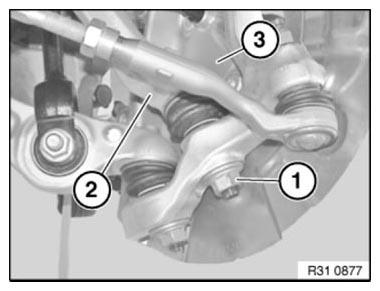

- Position tension strut (2) on swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
| Tension strut to swivel bearing | |
|---|---|
| M16 Replace nut. |
Joining torque 100 Nm Angle of rotation 90° |
Follow-up work
- Refer to INSTALLING FRONT BRAKE DISC .
- Refer to INSTALLING FRONT BRAKE CALIPER .
- Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
- Refer to MOUNTING THE WHEEL .
