Install the anti-roll bar link for the anti-roll bar

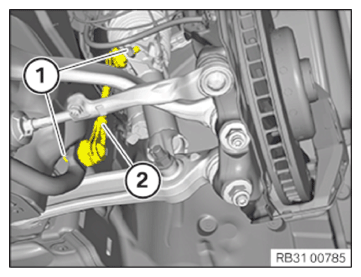

• Position anti-roll bar link (2).
• Replace nuts (1).

  Parts:  Nuts

• Tighten nuts (1).
  NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Anti-roll bar link on anti-roll bar/spring strut (air suspension)
M12 Replace nuts.	tightening torque  100 Nm
