Releasing both dust plates
Prerequisite
- Not valid for front axle transmission 168AL.
NOTE:
TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

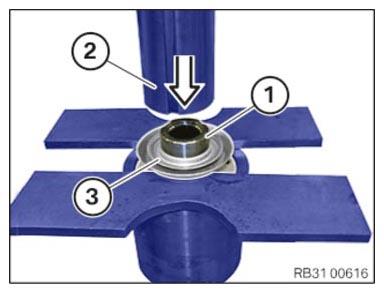

- Release both dust plates (3) from the drive flange (1) with the help of a hydraulic press (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
