Apply liquid sealing compound
NOTE:
TECHNICAL INFORMATION
The application time of the liquid sealing compound can be at a maximum of 10 min.
Start-up of the assembly is not possible until 25 minutes after the application time.
Non-observance can lead to leaks in the assembly.
The application time of the liquid sealing compound can be at a maximum of 10 min.
Start-up of the assembly is not possible until 25 minutes after the application time.
Non-observance can lead to leaks in the assembly.
- Position the liquid sealing compound (1)
on special tool 2 469 803
as shown.
Parts: Liquid sealing compound

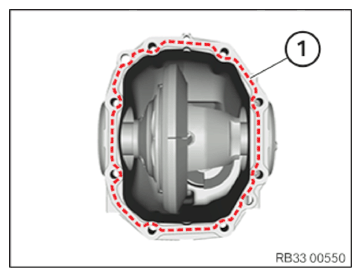

SEALING COMPOUND SPECIFICATIONLoctite 5970 liquid sealing compound Processing time <10 minutes at room temperature 50 ml, Cartridge 83190404517 NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Apply liquid sealing compound along the dotted line (1)
on the sealing surface of the rear axle differential.
The sealing bead must run along the inner edge.
