Removing the seal and cleaning the sealing surface

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Remove the seal on the housing of the rear axle differential using a scraper.

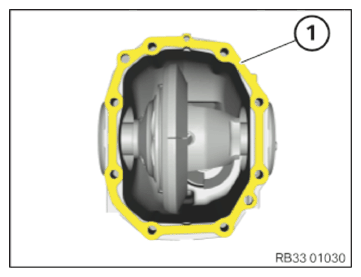

• Clean the sealing surface (1) on the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.
