Installing the installation protection ring of the radial shaft seal

NOTE: TECHNICAL INFORMATION

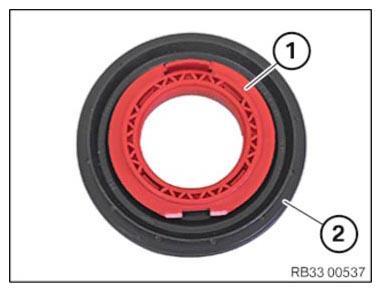

Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
