33 11 Rear Axle Differential Housing And Seals
>>
33 11 271 Replacing rear cover gasket on rear axle final drive (530i 2017-2022, 530i xDrive 2017-2022, 540i 2017-2022, 540i xDrive 2017-2022)
>>
Removing the gasket and cleaning the sealing surfaces
Removing the gasket and cleaning the sealing surfaces
Remove the gasket from the housing cover and the rear axle differential housing using a scraper.

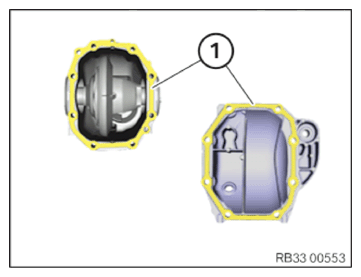

Clean the sealing surface
(1)
on the lid and the rear axle differential.
Courtesy of BMW OF NORTH AMERICA, INC.
