Installing the housing cover
- Position the housing cover on the rear axle differential.

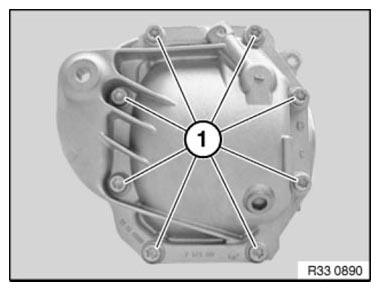

- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION
Lid to rear axle differential M12 Tightening torque 140 Nm
Follow-up Work
- Replace the left and right drive flange radial SHAFT SEAL
- If reusing: check the left and right output shaft and replacing SNAP RINGS .
- Install rear AXLE DIFFERENTIAL .
- Secure the left and right rear axle differential OUTPUT SHAFT .
- Check/top up the rear axle differential OIL LEVEL .
- Secure the rear axle differential PROPELLER SHAFT .
- Install the rear HEAT SHIELD .
- Install EXHAUST SYSTEM .
- Install the left and right camber control arm COVER .
