Installing dust plate
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Version A: Installing dust plate
- Replace dust plate (1).
Parts: dust plate

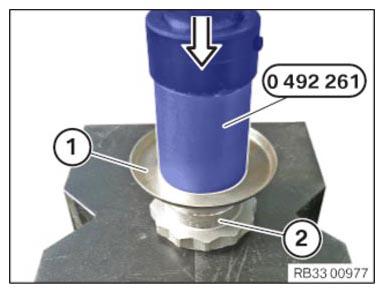

- Press the dust plate (1) onto the input flange (2) with a hydraulic press and the special tool 0 492 261 (33 3 201) in the direction of arrow
.
Version B: Installing dust plate
- Replace the large dust plate (1).
Parts: Large dust plate

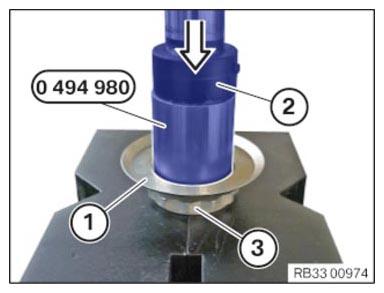

- Press the large dust plate (1) using hydraulic press (2) and special tool 0 494 980 (33 4 464)
in the direction of the arrow on input flange (3).
- Replace the small dust plate (1).
Parts: Small dust plate

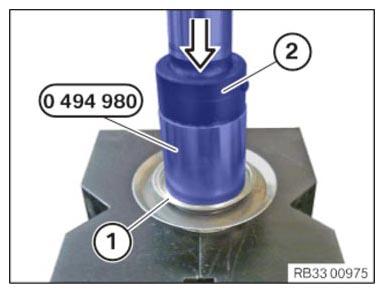

- Press the small dust plate (1) using hydraulic press (2) and special tool 0 494 980 (33 4 464)
on the input flange in the direction of the arrow.
