Installing the rubber mount of the rear axle differential mounting

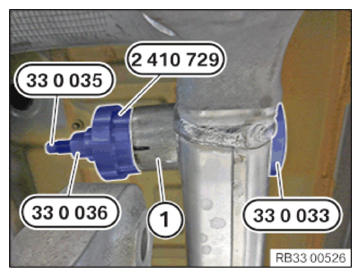

• Pull in rubber mount (1) using special tools 0 496 509 (33 0 033), 2 410 729, 0 496 511 (33 0 035) and 0 496 512 (33 0036).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Lift and secure the rear axle DIFFERENTIAL .
• Attach the propeller shaft CENTER MOUNT .
• Install the rear HEAT SHIELD .
• Install EXHAUST SYSTEM .
• Install the left and right camber control arm COVER .
