Releasing the spring strut shock absorber at the rear left and right from the wheel carrier
NOTE:
Perform the operations on the left and right side.

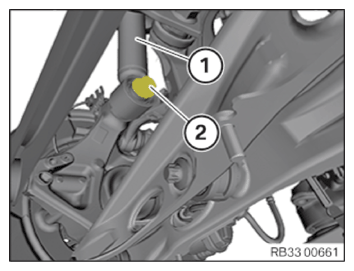

Releasing the rear spring strut shock absorber from the wheel carrier
- Release bolt (2)
on spring strut shock absorber (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
