Rear Axle - Repair (G30)
>>
33 32 Control Arms/ Trailing Arms
>>
33 32 091 Replacing a control arm (AW specification without wheel alignment) (540i 2017-2022, 540i xDrive 2017-2022)
>>
Removing the control arm
Removing the control arm

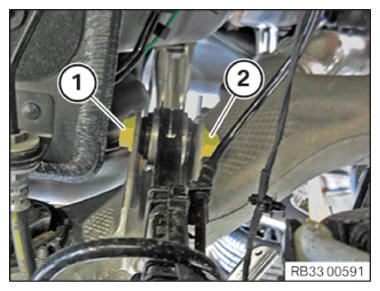

Loosen nut (2).
Pull out screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.

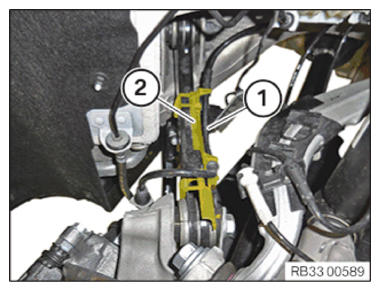

Release cable (1) from cable bracket (2).
Remove the cable clip (2).
Courtesy of BMW OF NORTH AMERICA, INC.

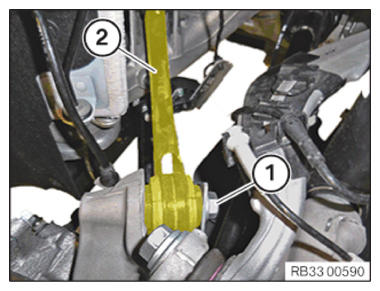

Loosen screw (1).
Remove the control arm (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
