Installing the control arm

Position the control arm (2).
Replace the screw (1).
Parts: screw

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.
Screw in the screw (1) but do not yet tighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1) and the nut (2).
Parts: Bolt, nut
Insert the screw (1).
NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the nut (2) but do not yet tighten.

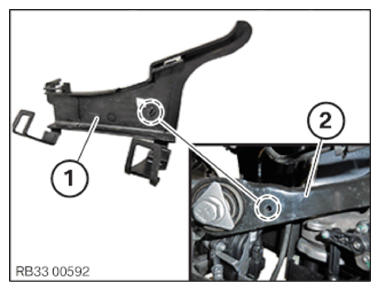

When installing the cable bracket (1), make sure that the pin on the cable bracket (1) is positioned in the bore of the control arm (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the cable clip (2).
Secure the cable (1) to the cable clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
