Installing the front rubber mount for the rear axle support
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preparing the rubber mount for installation
- Clamp special tool 2 455 956 in vice.
- Observe the arrow position (1) on the lower side of the special tool 2 455 956
.
- Correctly position the rubber mount (2):
The arrow (1) must point in the same direction as the arrow on the special tool 2 455 956 .
- Tighten the rubber mount (1) on the special tool 2 455 956
with the special tool 0 492 412 (33 4 155)
up to the stop.
Alignment of the front rubber mount on rear axle support

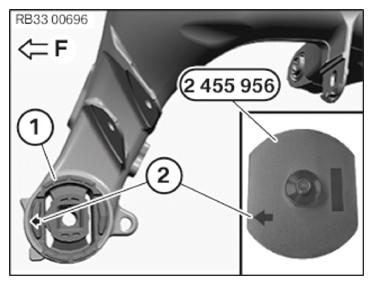

- Align front rubber mount (1) in direction of travel by means of the arrow on special tool 2 455 956
or on rubber mount (2).
(F) = driving direction
(View of the rear axle support from above)

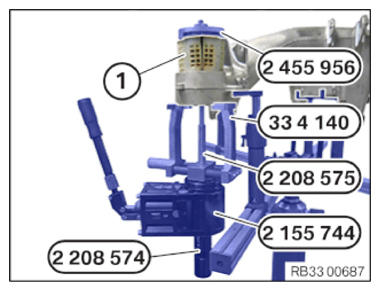

- Insert the rubber mount (1) into the rear axle support using special tools 2 455 956 0 492 397 (33 4 140) 2 208 575 2 155 744 and 2 208 574 .
- Remove the special tools.
