Rear Axle - Repair (G30)
>>
33 32 Control Arms/ Trailing Arms
>>
33 32 188 Removing and installing/replacing left or right camber control arm cover (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the cover of the camber control arm

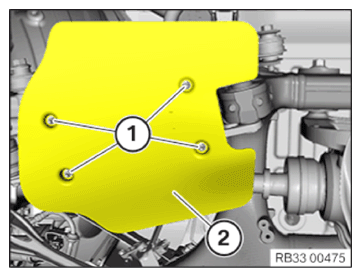

Remove the cover of the camber control arm
Loosen nuts (1).
Remove cover (2) of the camber control arm.
Courtesy of BMW OF NORTH AMERICA, INC.
