Preparing the rubber mount for installation

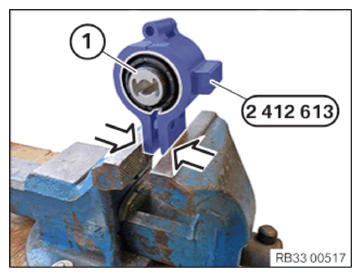

Clamp special tool 2 412 613 in a vice.
Open special tool 2 412 613 .
Coat the rubber mount (1) externally with the lubricant.
ASSEMBLY AIDS SPECIFICATION

Lubricant for rubber mount (Circo Light) 250 ml 83192405829

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The direction in which the rubber mount is mounted on the rear axle support from the special tool is indicated by an arrow on the special tool. The arrow must be observed.

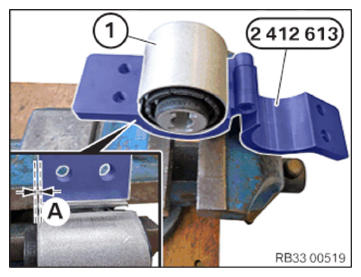

Align rubber mount (1) with the slot to the contact surfaces of the upper and lower section of special tool 2 412 613 .
Let the rubber mount (1) protrude on the special tool 2 412 613 in the direction of arrow by a dimension (A).
Dimension (A) = approximately 1 mm
Clamp special tool 2 412 613 in vice.
Check the protrusion of the rubber mount (1) (dimension A) and correct if necessary.
Join the upper and lower sections of special tool 2 412 613 by screwing in the supplied screws.

Courtesy of BMW OF NORTH AMERICA, INC.

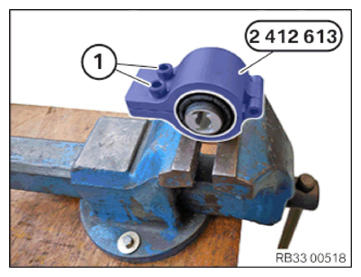

Clamp special tool 2 412 613 in vice.

Alternately tighten screws (1) in half turns.

NOTE: Do not tighten screws in a single action.

TIGHTENING TORQUES SPECIFICATION

Special tool
Accelerating alternately by half revolutions.	Tightening torque	30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
