Replacement: Remounting the rubber mount

Removing the rubber mount from the anti-roll bar

• Remove the rubber mount (2) from the anti-roll bar.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Checking the rubber mount for damage

  Check

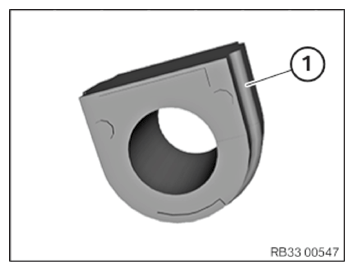

• Check the rubber mount (1) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The rubber mount (1) is damaged.

  Measure

  • Replace the rubber mount (1).

  Installing the rubber mount on the anti-roll bar

  NOTE: TECHNICAL INFORMATION
  Keep the anti-roll bar clean and free of oil and grease.
• Install the rubber mount (2) on the anti-roll bar (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
