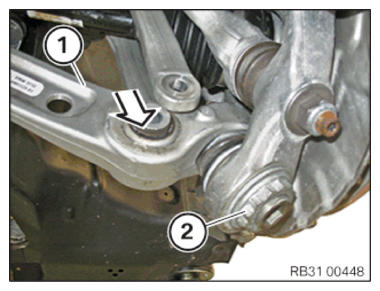

Installing the wheel guide joint

• Position the wheel guide joint (2).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  NOTE: Counter-hold at the Torx socket.
  TIGHTENING TORQUES SPECIFICATION



  Wheel control joint to wishbone
  M16 Replace nut.	Joining torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

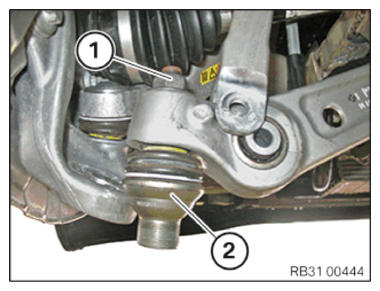

• Position the wishbone (1) including wheel guide joint (2) on the swivel bearing in direction of arrow.
• Replace nut (2).

  Parts:  Nut

• Tighten nut (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Wheel guide joint to swivel bearing
  M30 Replace nut.	tightening torque	380 Nm

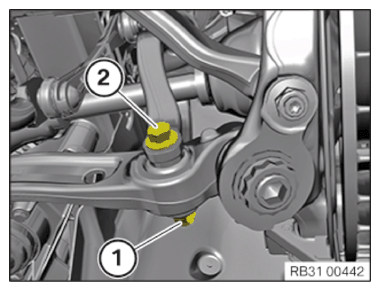

• Position spring strut holder on wishbone.
• Replace the bolt (2) and the nut (1).

  Parts:  Bolt and nut

• Install the screw (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
