Installing the wheel bearing
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

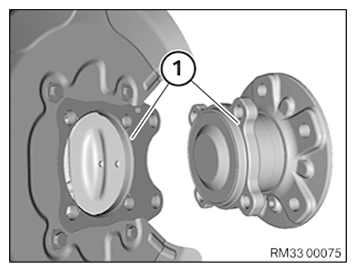

- Keep the contact surfaces (1) on the swivel bearing and wheel bearing clean and free from oil as well as grease.
- Position wheel bearing on swivel bearing.
- Replace the spherical-collar screws (1).
Parts: Spherical-collar screw

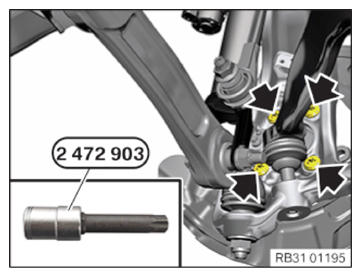

- Tighten the spherical-collar screws (1) with the special tool 2 472 903 .
TIGHTENING TORQUES SPECIFICATION
| Wheel bearing to swivel bearing | |
|---|---|
| M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence. The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time! |
Tightening torque 20 Nm Initial torque 140 Nm Unscrew all bolts. max. 45° Tightening torque 120 Nm Angle of rotation 90° |
