Loosening the anti-roll bar link on the left and right from the anti-roll bar
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE USING A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
NOTE:
Perform the steps on the right and left side.

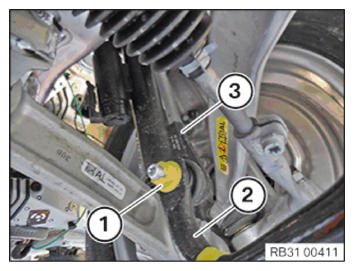

Loosening the anti-roll bar link from the anti-roll bar
- Loosen nut (1).NOTE: Counter-hold at the Torx socket.
- Loosen the anti-roll bar link (3) from the anti-roll bar (2).
