Replacing the wheel-side joint bellows

NOTE: TECHNICAL INFORMATION
Observe the notes on the disassembly and installation of low profile hose clamps!
For additional information see: NOTES ON THE DISASSEMBLY AND INSTALLATION OF LOW PROFILE HOSE CLAMPS .

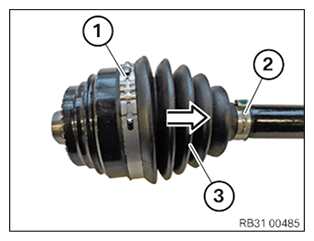

Release low profile hose clamp (1) and remove.
Cut ear hose clamp (2) open transversely to ear and remove.
Pull the bellows (3) back in the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

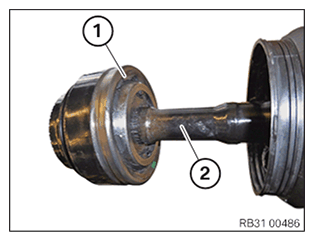

Clean accessible areas of joint (1) and output shaft (2) with a clean and lint-free cloth.
Push the joint (1) using the contact pressure of the circlip off the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

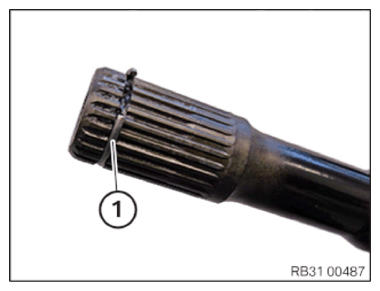

Detach the circlip (1) from the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

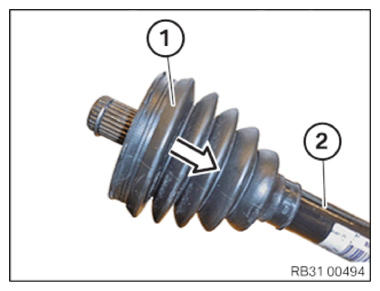

Detach the bellows (1) from the output shaft (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bellows (1).
Parts: gaiter
Slide the bellows (1) onto the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the circlip (1).
Parts: Circlip
Position the circlip (1) on the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the joint (1) onto the output shaft (2) using the contact pressure of the circlip.
Grease joint (1) with lubricant "Olistamoly 2 LN 584 LO".

Courtesy of BMW OF NORTH AMERICA, INC.

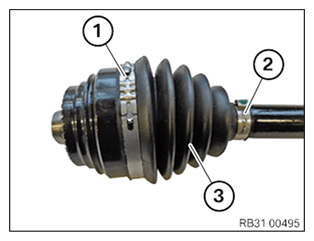

Replace low profile hose clamp (1) and ear hose clamp (2).
Parts: Low profile hose clamp and ear hose clamp
Position bellows (3) on joint.
Fasten bellows (3) with low profile hose clamp (1) and ear hose clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

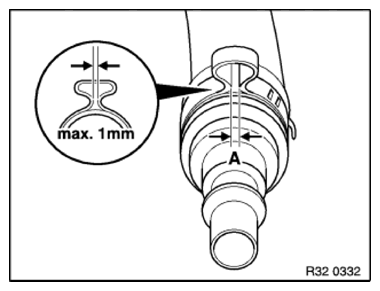

TECHNICAL DATA - GAP DIMENSION SPECIFICATION

Ear hose clamp gap dimension
Courtesy of BMW OF NORTH AMERICA, INC.	Dimension [A]	max. 1 mm
